oil sump

In China, to meet the basic requirements of automotive Oems and the aftermarket for the reliability and durability of engine lubrication systems, Hongyu has provided this product. Oil Sump is a metal housing component installed at the bottom of the engine for storing engine oil. Its main function is to accommodate all the engine oil required by the engine's lubrication system and, through its large surface area in contact with the air, help dissipate the oil. It also integrates the oil pump's oil strainer and oil drain bolt inside, which are indispensable foundations for the entire engine lubrication system.

Introduction

dry sump is the lower part of the crankcase, also known as the lower crankcase. It is located at the bottom of the engine, can be disassembled and serves as the casing for sealing the crankcase as an oil storage tank. Most of the products are made by stamping thin steel plates. Those with more complex shapes are generally cast with cast iron or aluminum alloy. It is equipped with an oil flow stabilizing baffle to prevent oil surface vibration and splashing caused by the jolting of the diesel engine, thereby avoiding the sedimentation of impurities in the lubricating oil. There is an oil dipstick on the side for checking the oil level and storing engine oil. When the engine stops running, some of the engine oil will flow back to the oil pan due to gravity. After the engine starts, the oil pump will deliver the engine oil to all the lubrication parts of the engine. Under normal circumstances, most of the engine oil remains in the oil pan.

Types of oil pans

The oil pan can be divided into a wet oil pan and a dry oil pan. The wet oil pan is used to seal the crankcase as the outer shell of the oil tank, to seal the crankcase to prevent impurities from entering the oil tank, and to collect and store the lubricating oil flowing back from the friction surfaces, dissipate some of the heat, and prevent the lubricating oil from oxidizing.

Dry oil pans are mostly used in racing cars. By eliminating the main function of the oil pan to store engine oil, various disadvantages caused by intense driving can be avoided.

The oil pans in our daily lives are all wet oil pans. The main function of this oil pan is to prevent the vehicle from running out of oil and leaking oil when the cleaning is too excessive. Generally, the oil pan of the car is flat. Pay attention to the regular cleaning of the car engine oil pan, because this part is at the bottom of the car and is particularly prone to various sludge.

Structure

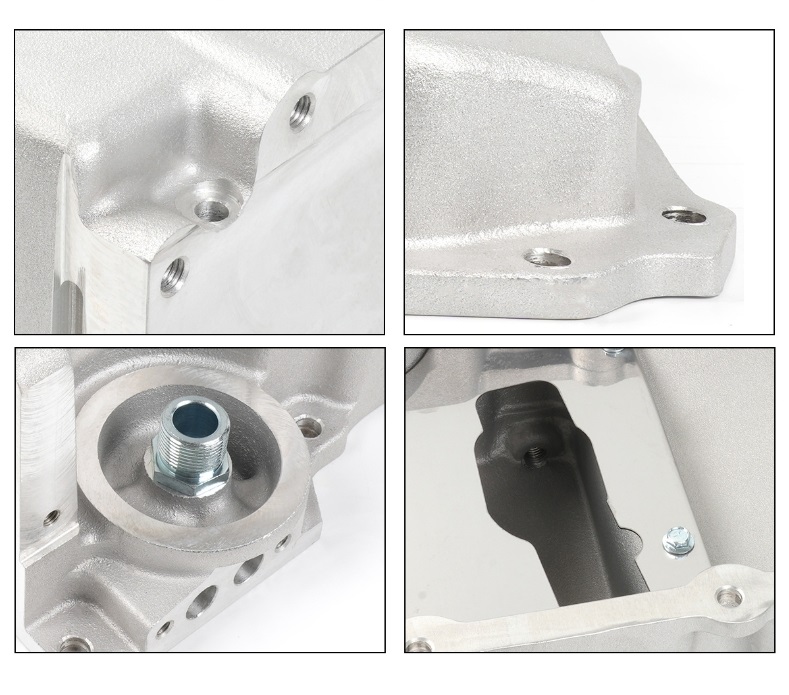

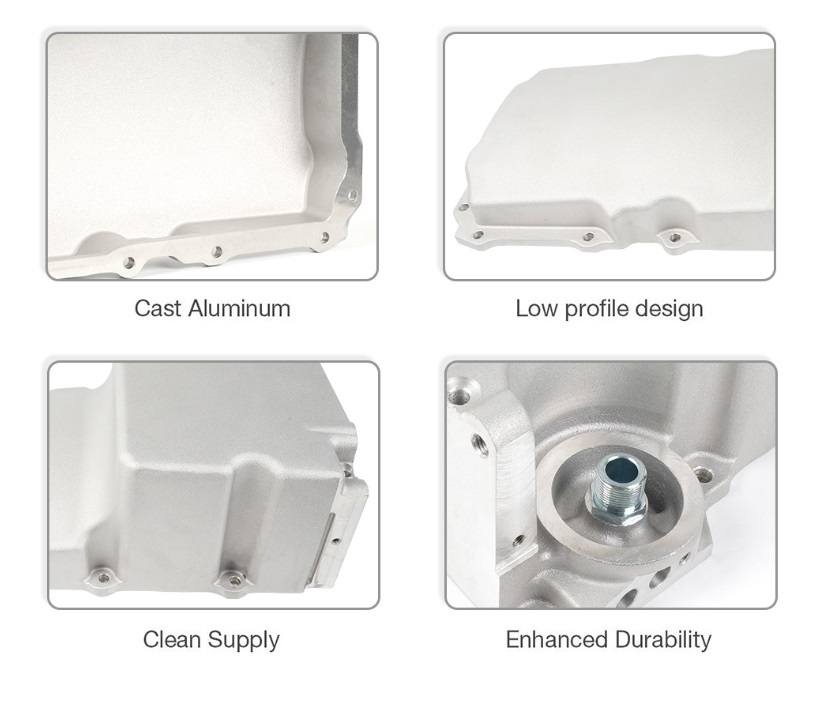

Structurally speaking, engine sump is an irregularly shaped basket-shaped container. It is mainly composed of the shell body, the connection flange surface with the cylinder block, the oil drain bolt interface and the internal filter installation seat. The main body of the shell is the space for storing engine oil. The connection flange surface is the key to ensuring a seal. The oil drain bolt interface is used for regular oil change. The strainer mounting seat ensures that the oil pump can draw in clean engine oil.

Type

dry sump can be divided into wet SUMP and dry SUMP. The wet oil pan, as the outer shell of the oil tank, is used to seal the crankcase, prevent impurities from entering the oil tank, collect and store the lubricating oil that flows back from the friction surfaces, dissipate part of the heat, and prevent the oxidation of the lubricating oil.

The oil pans we commonly see in our daily life are all wet oil pans. The main function of this oil pan is to prevent the vehicle from having insufficient engine oil or oil leakage due to excessive cleaning. Generally speaking, the oil pan of a car is flat. It is necessary to pay attention to cleaning the oil pan of the car engine regularly, as it is located at the bottom of the vehicle and is particularly prone to accumulate various types of sludge.

Dry oil pans are mainly used in racing cars. By eliminating the main function of the oil pan for storing engine oil, various drawbacks caused by intense driving can be avoided.
