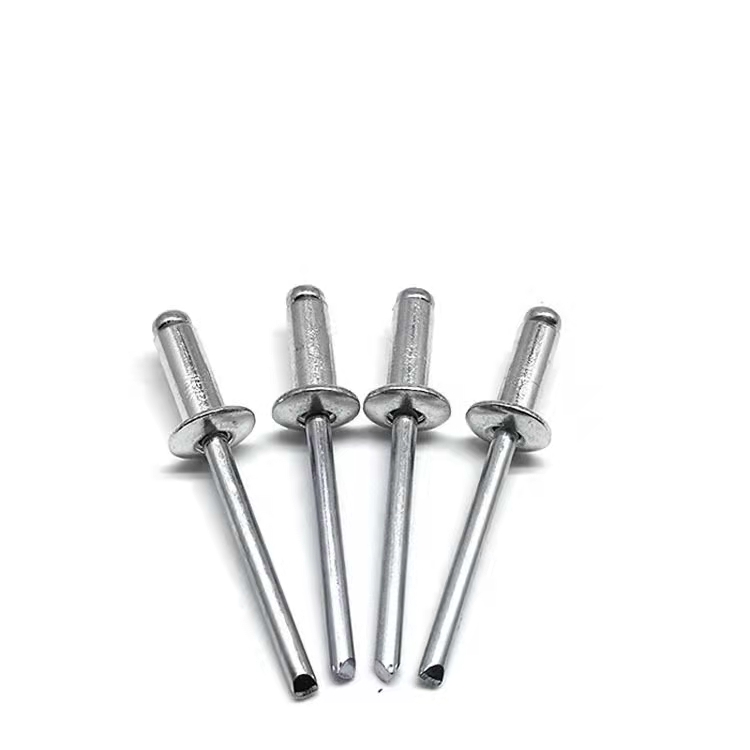

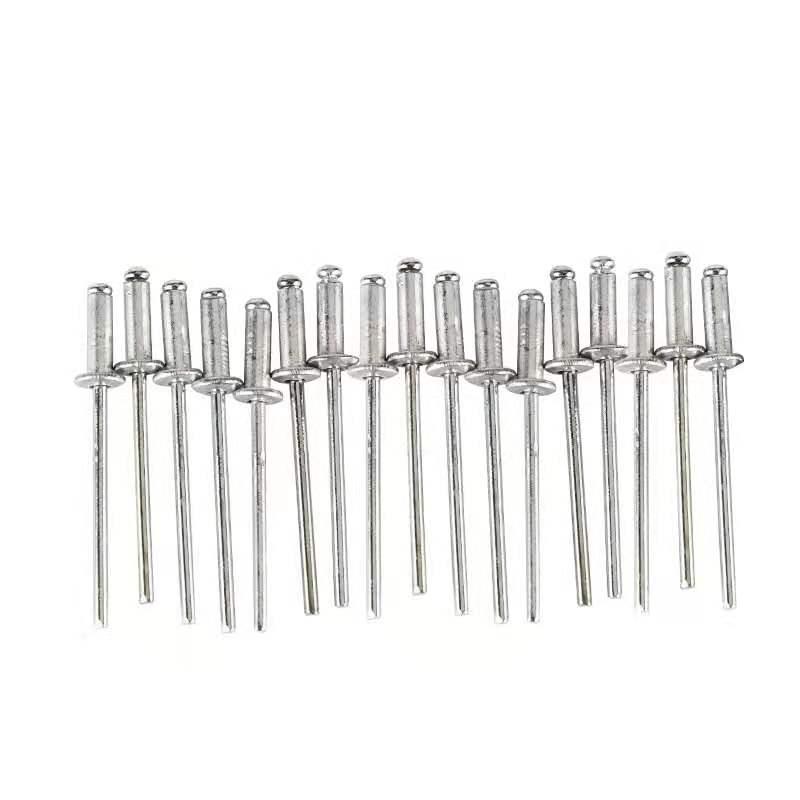

stainless steel rivets

Xiamen Hongyu Intelligent Technology Co., Ltd. is a professional manufacturer of high-quality stainless steel rivets. The company is equipped with a complete set of advanced production facilities and automatic lathes, and adopts international advanced standards for production. "Zero defects, building a brand" is the mission of Hongyu. We hope to establish good cooperative relations with domestic and foreign customers on the basis of equality, mutual benefit and common development.

Features

Stamping riveting, also known as pressure riveting process. This process connects parts through rivets or the plastic deformation of the parts after they are subjected to force. Whether it is rivet deformation or rivnut deformation, the pressure riveting process belongs to the cold heading process.

The stamping riveting process is characterized by rapid force application and high riveting efficiency. The connecting materials at the riveting points interlock with each other, with no edges or burrs at the bottom, avoiding stress concentration and enabling it to withstand higher dynamic loads.

No heating is required during the connection process, and the surface coating of the material at the connection point will not be damaged. At the same time, it avoids welding spatter and welding deformation, and can achieve the connection of multiple layers of materials, plates of different thicknesses and different materials.

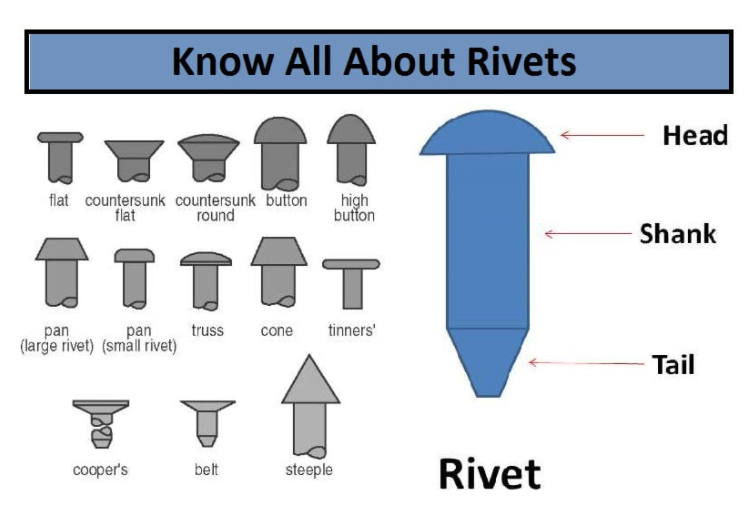

Riveted type

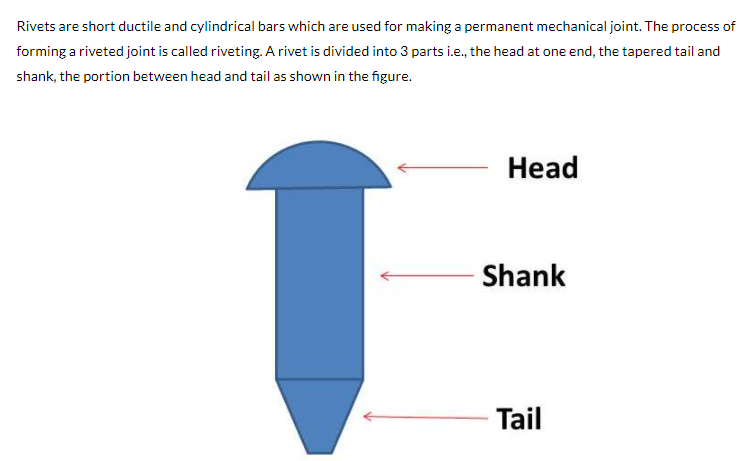

The early riveting process was simple and the structure was relatively monotonous. A rivet consists of a smooth cylindrical body and a rivet head at one end. When installing, insert the rivets into the punched or drilled holes, then thicken or bend (deform) the tail of the rivets to make them expand and secure them in place. Because both ends of the installed rivets have effective rivet heads, they can withstand tensile loads and shear loads.

In recent years, the types of stainless steel riveting processes have become increasingly diverse, and the classification methods are also various. According to the process classification, it can be divided into cold riveting and hot riveting. According to environmental protection requirements, it can be divided into single-sided riveting and double-sided riveting.

Procurement Instructions

When choosing rivets, it is necessary to consider the material of the connecting parts, whether it is metal or non-metal, as well as the hardness and brittleness of the material, etc. The selected rivets ensure that the thickness of the sheet is within their clamping range. Determine the tensile force and shear force required for the rivet connection points; The manufacturer will specify the matching hole diameter of the rivet nut. You can refer to the manufacturer's design data. Consider the coating thickness of the sheet to avoid the hole diameter becoming smaller after coating, which is not suitable for installation. The material type and coating of rivets should be determined according to the required corrosion resistance. Try to choose rivets made of the same material as the connecting parts. Different materials may cause galvanic corrosion. Special requirements, such as flat head, sunken head, double-tube type or lantern type; The requirements for water tightness and air tightness of riveted components, etc.
