How Do Metal Junction Boxes Enhance Safety in Industrial Wiring Systems?

        Against the backdrop of the accelerated development of industrial automation and intelligent manufacturing, the safety and stability of electrical systems have become the core guarantee for enterprise production. The new generation of metal junction boxes launched by HONGYU, through material upgrades, structural optimizations and intelligent designs, have achieved breakthroughs in key safety indicators such as explosion-proofing, fire prevention and electric shock prevention, providing reliable electrical connection solutions for fields such as petrochemicals, mechanical manufacturing and new energy.

A high-strength metal casing builds a physical protective barrier

        The HONGYU metal junction box is made of 3mm thick cold-rolled steel plate and processed by laser cutting and one-piece stamping forming technology. The overall structure has no welding weaknesses. Its impact resistance meets the IK10 standard and can withstand mechanical shock of 10 joules, effectively protecting the internal circuits in scenarios such as equipment transportation and pipeline construction. Actual measurement data shows that after a drop test from a height of 2 meters, the box can still maintain an IP66 protection level, ensuring that dust and water droplets cannot enter.

Explosion-proof design blocks the transmission of risks in hazardous environments

        For flammable and explosive sites such as chemical and metallurgical industries, the R&D team of HONGYU has added pressure relief channels and flameproof joint surfaces inside the junction box. When the internal arc causes a sudden increase in pressure, the dedicated pressure relief device can be activated within 0.1 seconds to direct the explosion energy out, preventing the box from bursting. Meanwhile, the gap of the flameproof surface is controlled within 0.15mm. Combined with the stainless steel threaded connection, it ensures that the flame propagation path is completely cut off and has passed the ATEX Zone 2 explosion-proof certification.

Thermal management technology prevents electrical fire hazards

        Through the built-in temperature sensor and intelligent heat dissipation system, the HONGYU junction box can monitor the temperature rise at the connection points in real time. When the temperature exceeds 85℃, the aluminum alloy heat dissipation fins will automatically start to accelerate heat exchange, and the heat dissipation efficiency is three times higher than that of traditional plastic junction boxes. In the long-term tests at a certain automobile factory, this design reduced the aging rate of the circuit by 60%, decreased the short-circuit accidents caused by overheating by 82%, and significantly extended the service life of the electrical system.

The multiple sealing structure eliminates the risk of electric leakage

        For damp and corrosive environments, HONGYU adopts dual protection with silicone rubber sealing rings and epoxy resin potting technology. The Shore hardness of the sealing ring reaches 65A, and the compression rebound rate remains above 90%, ensuring continuous effectiveness within the temperature range of -40℃ to 85℃. The design of the entry port innovatively adopts a threaded locking structure, which is connected with galvanized steel pipes. With an IP68 protection level, it can withstand immersion in water up to 1 meter deep for 72 hours, completely eliminating the insulation failure problem caused by rainwater infiltration.

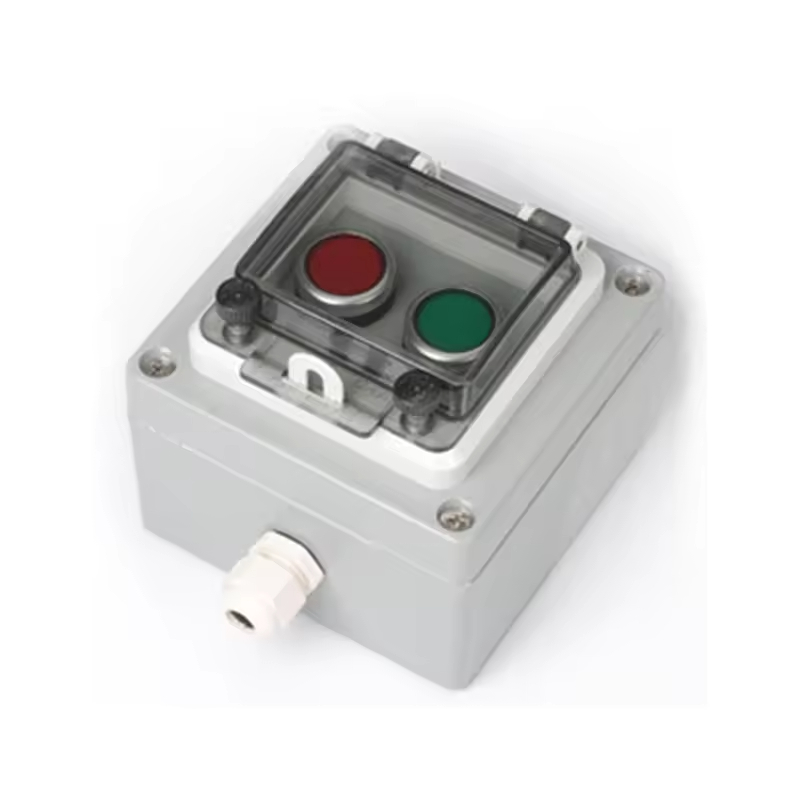

        Modular design enhances the efficiency of security maintenanceTo reduce on-site operation risks, HONGYU designed the junction box as a module that can be quickly disassembled and assembled. The transparent window is made of polycarbonate material, which has an impact resistance 200 times that of ordinary glass. Maintenance personnel can observe the status of the lines without opening the box. The internal terminal block adopts spring connection technology, allowing wiring to be completed with one hand. Compared with the traditional screw fastening method, the operation time is reduced by 70%, and at the same time, it avoids electric shock accidents caused by tool slippage.

Industry verification consolidates the benchmark position in safety

        In the renovation project of a large-scale oil refinery, HONGYU metal junction boxes successfully replaced the original plastic products, reducing the regional electrical failure rate by 91% and cutting the downtime for maintenance by 45%. At present, the product has passed international safety certifications such as UL and CSA, and has been cumulatively applied in over 120,000 industrial nodes worldwide. It has maintained a record of zero major safety accidents for five consecutive years.

Green manufacturing practices the concept of safety and sustainability

        The smart factory invested and constructed by HONGYU adopts full-process digital control, achieving 100% quality traceability from raw material smelting to finished product inspection. By optimizing the stamping process and surface treatment technology, the energy consumption for the production of a single junction box was reduced by 28%, and the material recovery rate was increased to 99.2%. The enterprise simultaneously launched the "Safety Upgrade Plan", committing to providing free wiring system safety assessment services to all customers by 2025.
